April 26

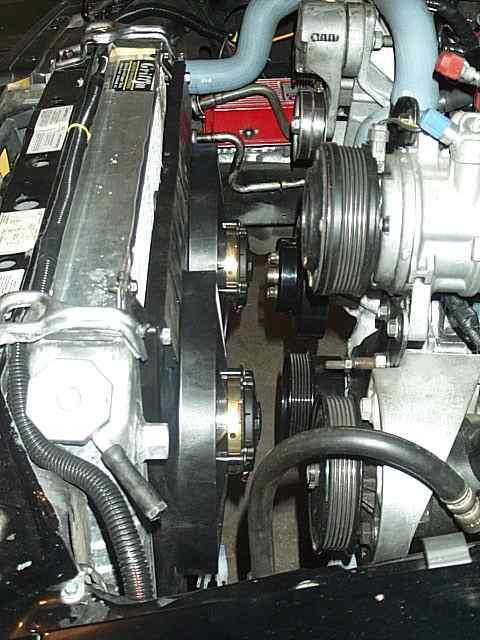

Well, it has been a while since I have updated the page, so I feel it is about time. First off, if you haven't seen the Griggs Racing parts install, you should check that out, as it falls right here in the timeframe. I decided to make the Griggs Racing stuff it's own page since there really is a lot to it, and more parts will get added later. The picture above, of course, is the first of 3 pictures of my new 2780cfm Spal fan setup. I haven't had much of a problem with heat, but I wanted to be sure. Besides, it does free up some horsepower..

-J




April 26

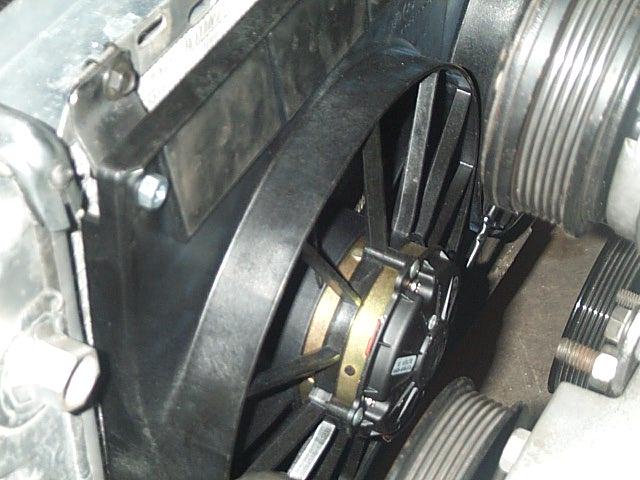

Here is another pic. This is looking down at the driver's side of the car. You can see the custom brackets I fabricated for holding the fans tight to the radiator. They aren't going anywhere.

-J






April 26

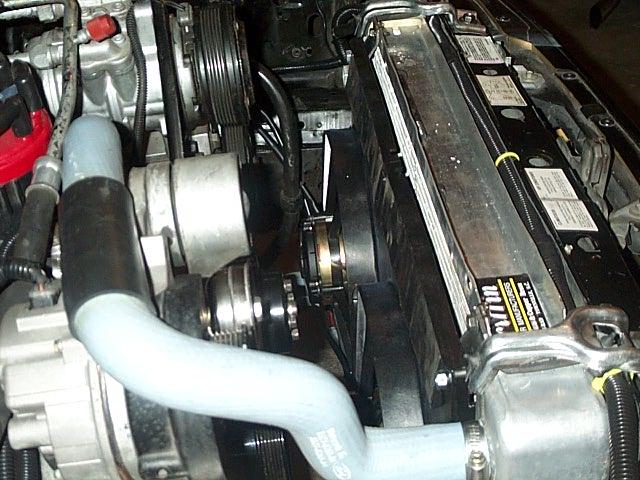

This is just a look down from the top, at the fan install. Plenty of room. If anyone is having trouble keeping cool, I haven't been able to find a fan on the market that will move as much air as these puppies.
-J





April 28

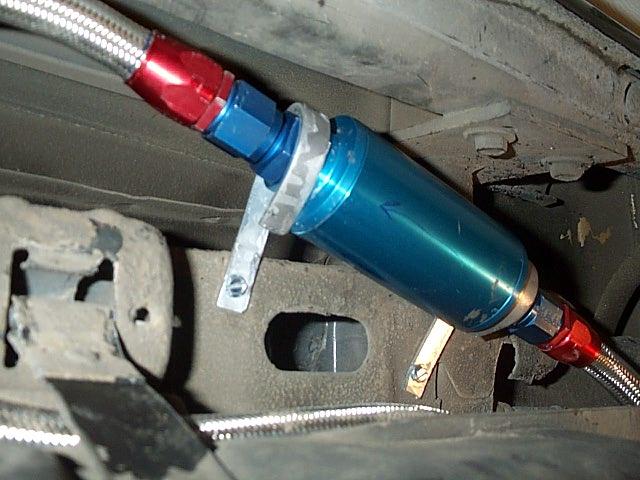

Finally... the fuel filter location ended up on the rear passenger side of the fuel tank. I still am not happy with it entirely, and the fuel system has too many bends, but it will work for now, until I get some hose ends or a better location figured out. Should be running tomorrow morning.
